Urban Low-Slope Extension: The Ultimate Flat Roof Solar Solution

Home » Project » Urban Low-Slope Extension: The Ultimate Flat Roof Solar Solution

Project Type

High-end residences

Project Date

January 2, 2025

Project Address

China

Product Type

Lumina Slate Series

The Flat Roof Dilemma: Flat or low-slope roofs (commonly found on urban home extensions, sunrooms, and garages) are notoriously susceptible to water ponding and severe leaks during heavy rain. The homeowner wanted to add solar power, but installing traditional rack-mounted panels would require heavy concrete ballasts, adding dangerous dead weight to the structure and creating traps for debris and stagnant water.

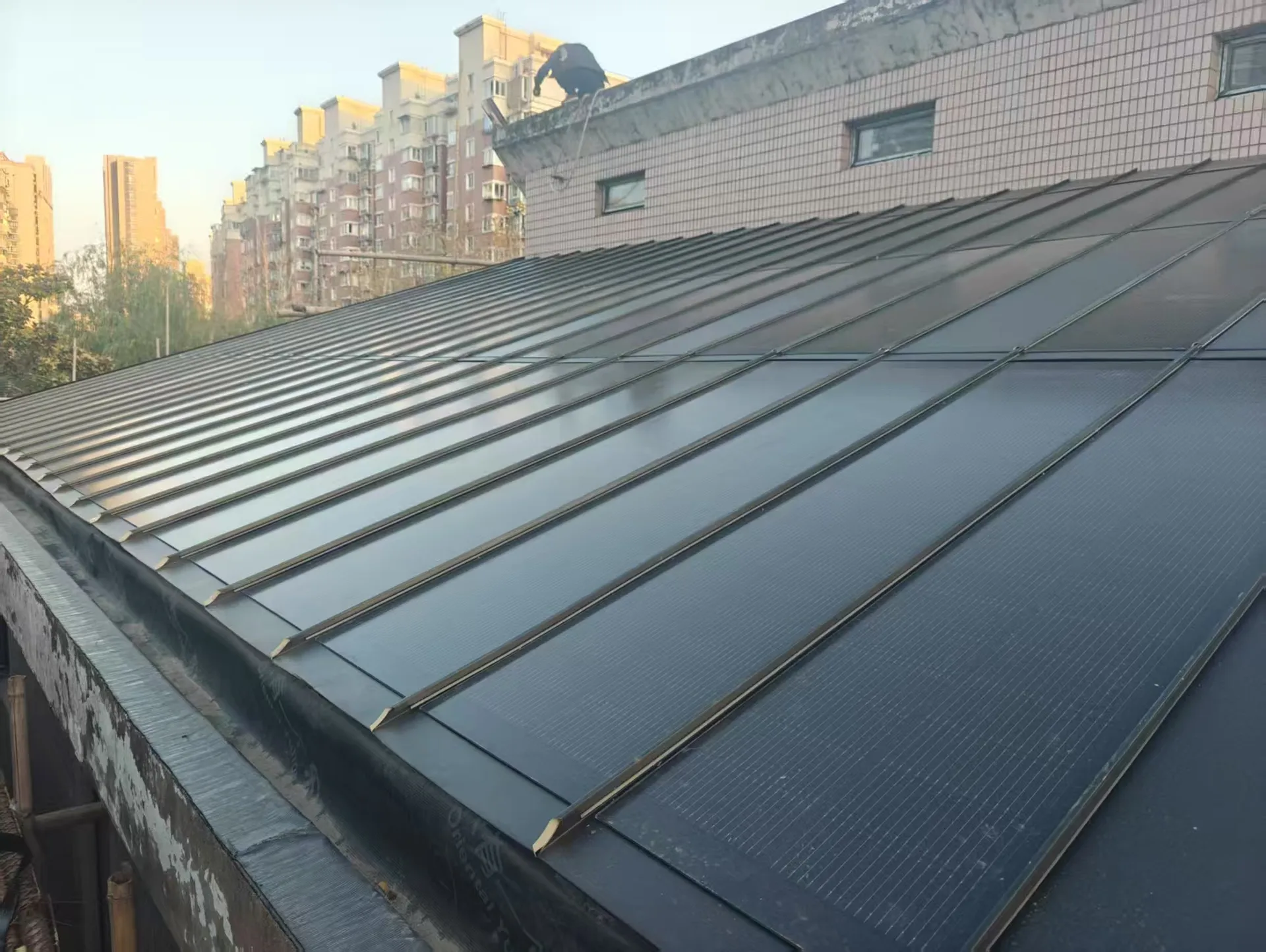

Zero-Leak Standing Seam Technology: We deployed the Storm Guard series specifically for its standing-seam interlocking profile. This design is perfect for low-slope applications. Acting as the primary roof, it creates a 100% watertight barrier that actively channels rain away, completely eliminating the risk of water ponding.

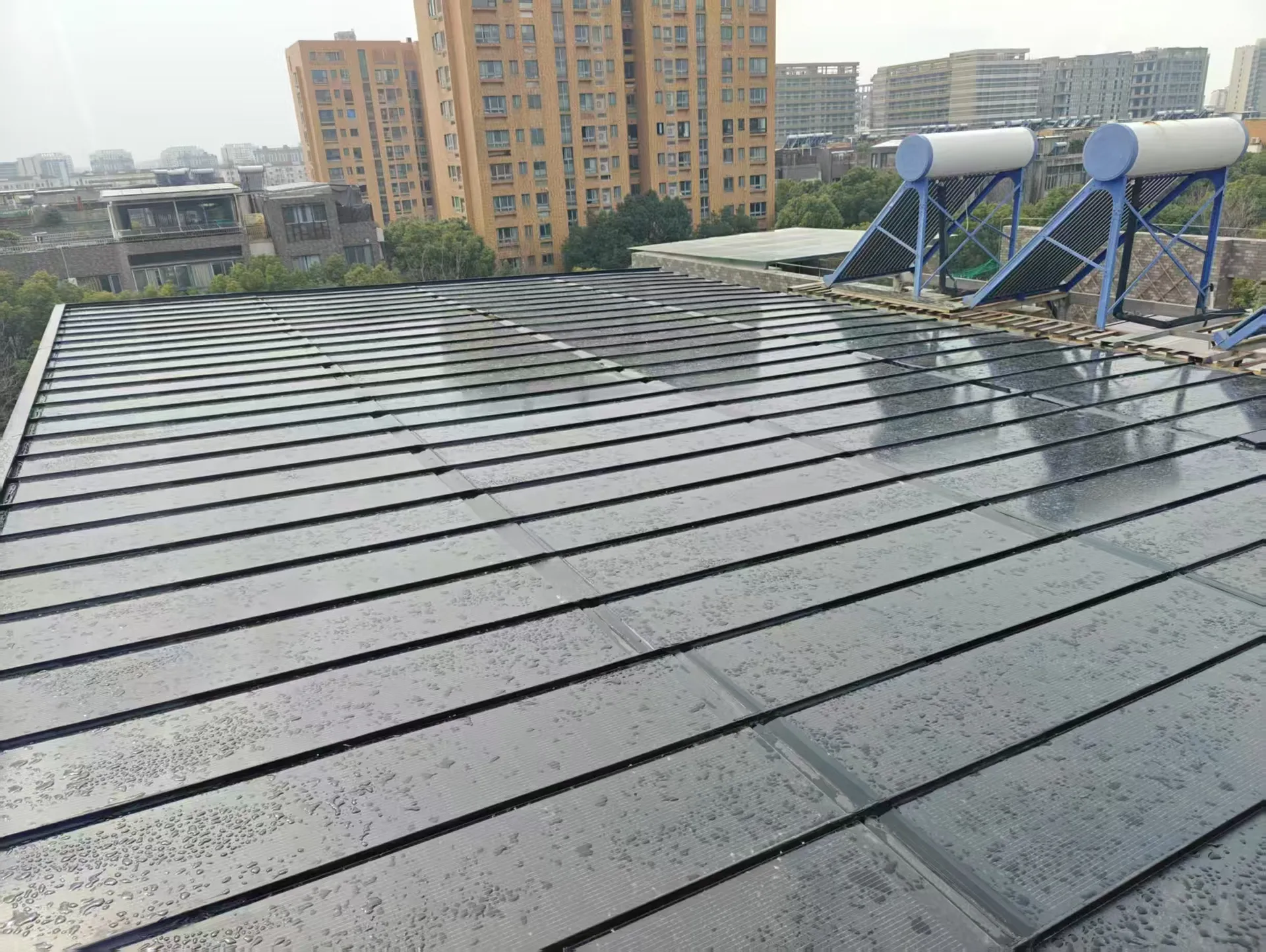

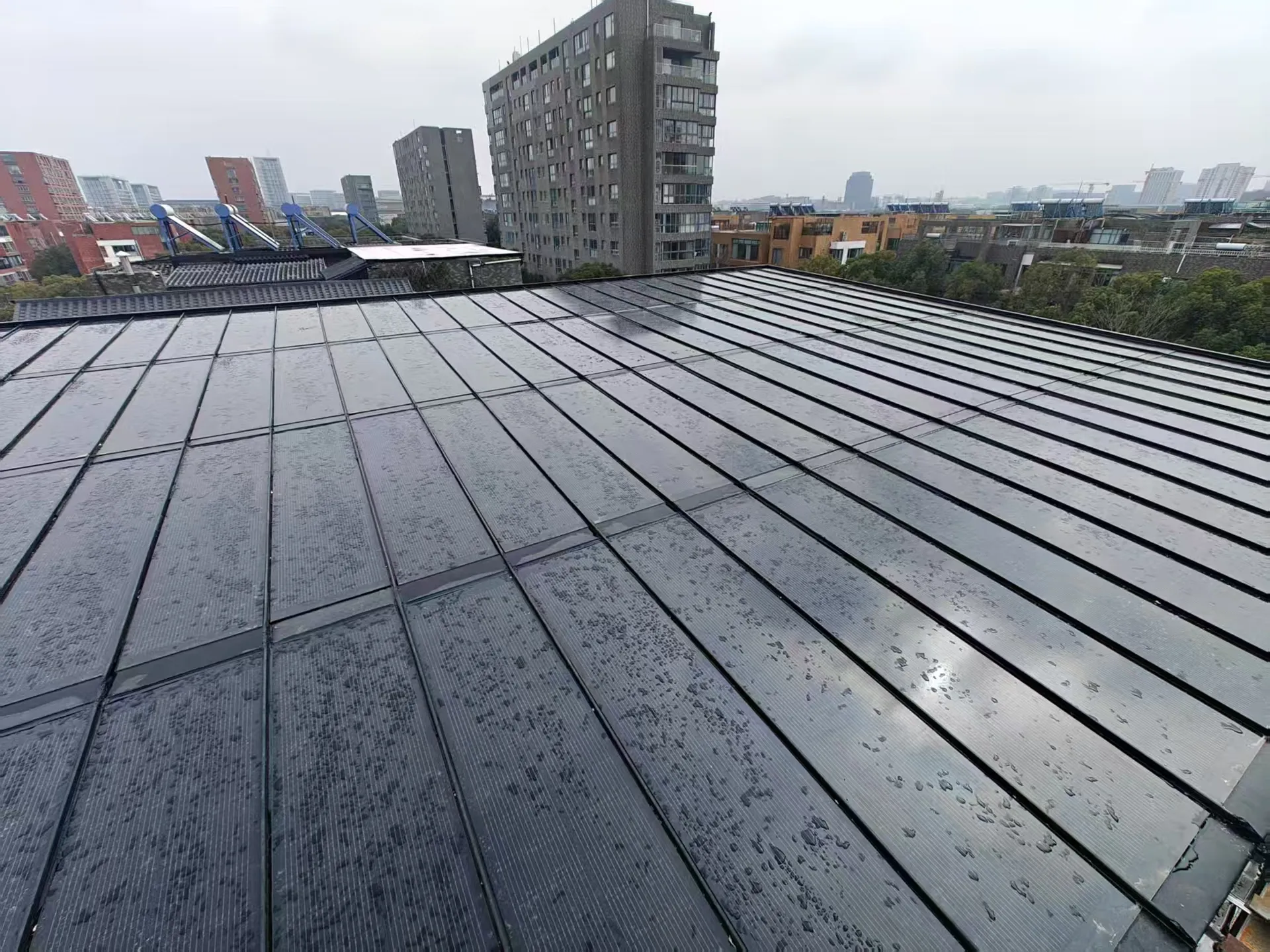

Lightweight & Efficient: By eliminating the need for heavy ballasted racking, we significantly reduced the structural load on this urban property. As seen in our wet-surface post-rain photos, the 6kW system flawlessly protects the home extension while silently generating around 6,500 kWh of clean energy per year.

Product Gallery

Technical Highlights& Components

System Type: Low-Slope / Flat Roof Residential Retrofit
Solar Tiles: Storm Guard Series (Standing Seam Profile)
Estimated Capacity: 6 kWp
Active Roof Area: 60 sq.m
Key Features: Anti-ponding, zero-penetration waterproofing, lightweight integration
Annual Estimated Output: 6,500 kWh

Project Log

“Low-slope roofs don’t have to be a liability. With Storm Guard’s watertight standing seam design, we turn vulnerable flat roof extensions into leak-proof solar powerhouses—without the damaging weight of traditional ballasted racks.” — Sunlit Engineering Team
